vLLM 源码阅读 - Block Manager 与核心调度逻辑 (part2)
  2025-05-15 2025-05-15 15:50      2.5k Words

说明：基于 vLLM v0.7.3，commit id: ed6e9075d31e32c8548b480a47d1ffb77da1f54c (HEAD, tag: v0.7.3)

vLLM 调度逻辑

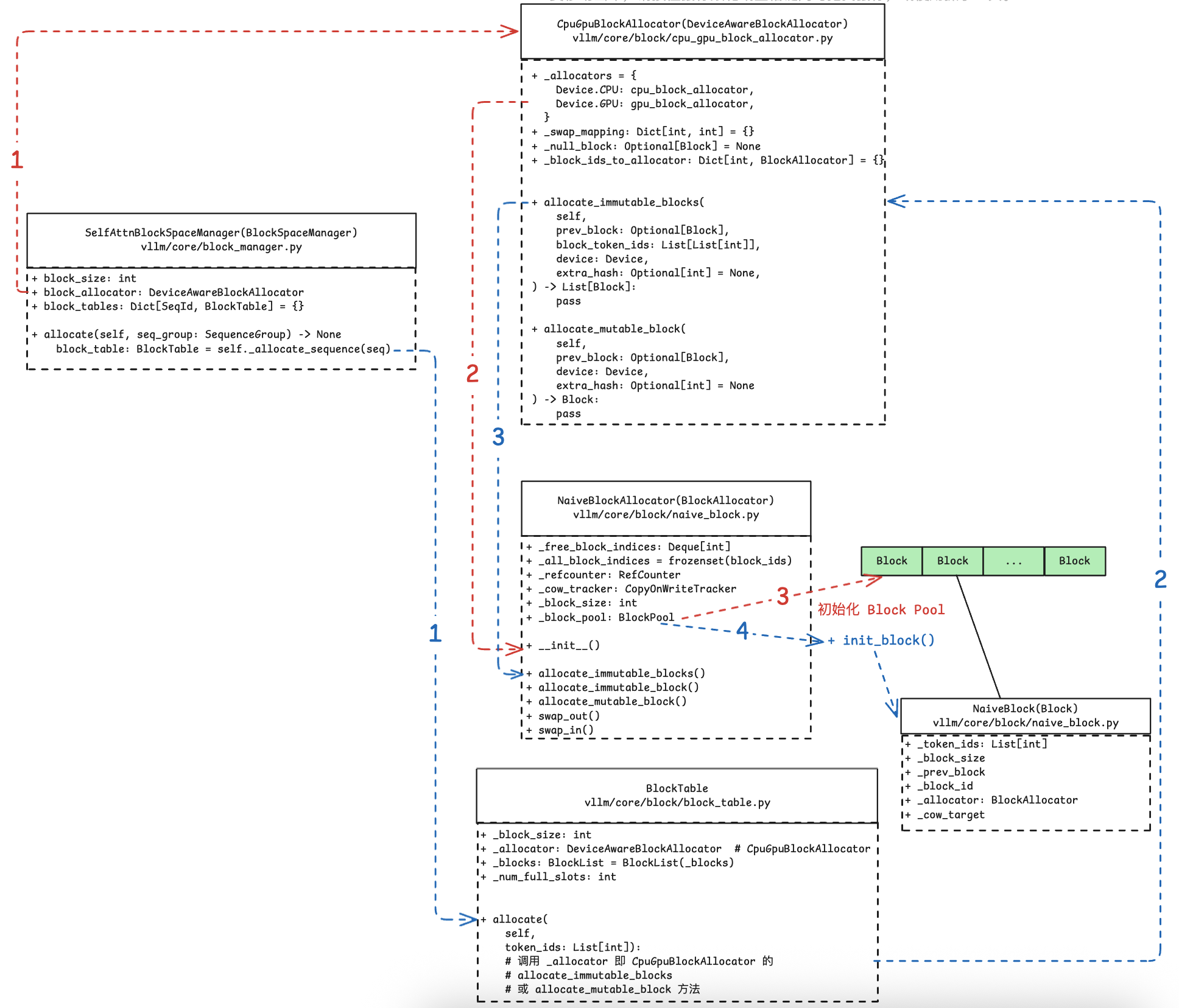

介绍具体的调度逻辑前，需要梳理一下 block manager 的实现。调度逻辑中，block manager 会作为具体的判断条件。

block manager subsystem 的设计可以参考官方的 PR。

现总结如下：

1
2
3
4
5
6
7
8
9
10
BlockSpaceManager
    将 `SequenceGroup` 的操作映射为 lower-level 的操作
BlockTable
    将单个 `Sequence` 的 KV Cache 映射为 physical 的分配，处理 sliding_window / lookahead 的分配
DeviceAwareBlockAllocator
    将 block 分配映射到 device，处理 swapping
BlockAllocator
    分配和释放 block，重新计数、copy-on-write 等
Block
    将 token ids 存入

block manager

BlockSpaceManager 的初始化：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
# --------------------
# BlockSpaceManager 将 `SequenceGroup` 的操作映射为 lower-level 的操作
# --------------------
# vllm/core/block_manager.py
class SelfAttnBlockSpaceManager(BlockSpaceManager):
    def __init__(
        self,
        block_size: int,
        num_gpu_blocks: int,
        num_cpu_blocks: int,
        watermark: float = 0.01,
        sliding_window: Optional[int] = None,
        enable_caching: bool = False,
    ) -> None:
        self.block_size = block_size
        self.num_total_gpu_blocks = num_gpu_blocks
        self.num_total_cpu_blocks = num_cpu_blocks
        # ---------------------------------------
        # memory swapping 的阈值，默认 0.01
        # ---------------------------------------
        self.watermark = watermark
        self.watermark_blocks = int(watermark * num_gpu_blocks)
        # ---------------------------------------
        # CpuGpuBlockAllocator in vllm/core/block/cpu_gpu_block_allocator.py
        # CpuGpuBlockAllocator 继承自接口类 DeviceAwareBlockAllocator

        # block_allocator 属性即为 CpuGpuBlockAllocator 的实例
        # ---------------------------------------
        self.block_allocator = CpuGpuBlockAllocator.create(
            allocator_type="prefix_caching" if enable_caching else "naive",
            num_gpu_blocks=num_gpu_blocks,
            num_cpu_blocks=num_cpu_blocks,
            block_size=block_size,
        )
        # ---------------------------------------
        # BlockTable in vllm/core/block/block_table.py
        # 将单个 `Sequence` 的 KV Cache 映射为 physical 的分配，
        # 处理 sliding_window / lookahead 的分配
        # ---------------------------------------
        self.block_tables: Dict[SeqId, BlockTable] = {}
        self.cross_block_tables: Dict[EncoderSeqId, BlockTable] = {}

CpuGpuBlockAllocator.create 如下，创建 CpuGpuBlockAllocator 实例。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
# ------------------------
# DeviceAwareBlockAllocator 将 block 分配映射到 device，处理 swapping
# ------------------------
# vllm/core/block/cpu_gpu_block_allocator.py
class CpuGpuBlockAllocator(DeviceAwareBlockAllocator):
    @staticmethod
    def create(
        allocator_type: str,
        num_gpu_blocks: int,
        num_cpu_blocks: int,
        block_size: int,
    ) -> DeviceAwareBlockAllocator:
        reserved_blocks = 1 if current_platform.is_hpu() else 0
        # ---------------------------------
        # 非 hpu device，则按照预先计算的 gpu_blocks 和 cpu_blocks 数量
        # [0, 1, ..., num_gpu_blocks + num_cpu_blocks - 1]
        # ---------------------------------
        block_ids = list(
            range(reserved_blocks, num_gpu_blocks + num_cpu_blocks))
        num_gpu_blocks -= reserved_blocks
        gpu_block_ids = block_ids[:num_gpu_blocks]
        cpu_block_ids = block_ids[num_gpu_blocks:]
        ...
        if allocator_type == "naive":
            gpu_allocator: BlockAllocator = NaiveBlockAllocator(
                create_block=NaiveBlock,  # type: ignore
                num_blocks=num_gpu_blocks,
                block_size=block_size,
                block_ids=gpu_block_ids,
            )

            cpu_allocator: BlockAllocator = NaiveBlockAllocator(
                create_block=NaiveBlock,  # type: ignore
                num_blocks=num_cpu_blocks,
                block_size=block_size,
                block_ids=cpu_block_ids,
            )
        elif allocator_type == "prefix_caching":
            gpu_allocator = PrefixCachingBlockAllocator(
                num_blocks=num_gpu_blocks,
                block_size=block_size,
                block_ids=gpu_block_ids,
            )

            cpu_allocator = PrefixCachingBlockAllocator(
                num_blocks=num_cpu_blocks,
                block_size=block_size,
                block_ids=cpu_block_ids,
            )
        ...

    def __init__(self, cpu_block_allocator: BlockAllocator,
                 gpu_block_allocator: BlockAllocator):
        ...
        self._allocators = {
            # ---------------------------------
            # NaiveBlockAllocator 的实例
            # 参照 `create` 函数中 gpu_allocator 的创建
            # ---------------------------------
            Device.CPU: cpu_block_allocator,
            # ---------------------------------
            # NaiveBlockAllocator 的实例
            # 参照 `create` 函数中 gpu_allocator 的创建
            # ---------------------------------
            Device.GPU: gpu_block_allocator,
        }

        self._swap_mapping: Dict[int, int] = {}
        self._null_block: Optional[Block] = None

        self._block_ids_to_allocator: Dict[int, BlockAllocator] = {}
        for _, allocator in self._allocators.items():
            for block_id in allocator.all_block_ids:
                self._block_ids_to_allocator[block_id] = allocator

    # ---------------------------------
    # 几个重要的 API
    # ---------------------------------

    # ---------------------------------
    # 如果一个 block 没有满，还有 slot 空位
    # ---------------------------------
    def allocate_mutable_block(self,
                               prev_block: Optional[Block],
                               device: Device,
                               extra_hash: Optional[int] = None) -> Block:
        # ---------------------------------
        # 实际调用 gpu_allocator 或者 cpu_allocator (NaiveBlockAllocator) 的方法
        # ---------------------------------
        return self._allocators[device].allocate_mutable_block(
            prev_block, extra_hash=extra_hash)

    def allocate_immutable_blocks(
            self,
            prev_block: Optional[Block],
            block_token_ids: List[List[int]],
            device: Device,
            extra_hash: Optional[int] = None) -> List[Block]:
        # ---------------------------------
        # 实际调用 gpu_allocator 或者 cpu_allocator (NaiveBlockAllocator) 的方法
        # ---------------------------------
        return self._allocators[device].allocate_immutable_blocks(
            prev_block, block_token_ids, extra_hash=extra_hash)

    def allocate_immutable_block(self,
                                 prev_block: Optional[Block],
                                 token_ids: List[int],
                                 device: Device,
                                 extra_hash: Optional[int] = None) -> Block:
        # ---------------------------------
        # 实际调用 gpu_allocator 或者 cpu_allocator (NaiveBlockAllocator) 的方法
        # ---------------------------------
        return self._allocators[device].allocate_immutable_block(
            prev_block, token_ids, extra_hash=extra_hash)

现在详细看看 BlockAllocator 的初始化和核心 API。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
# ---------------------
# BlockAllocator 分配和释放 block，重新计数、copy-on-write 等
# ---------------------
# vllm/core/block/naive_block.py
class NaiveBlockAllocator(BlockAllocator):
    def __init__(
        self,
        create_block: Block.Factory,
        num_blocks: int,
        block_size: int,
        block_ids: Optional[Iterable[int]] = None,
        block_pool: Optional[BlockPool] = None,
    ):
        if block_ids is None:
            block_ids = range(num_blocks)

        self._free_block_indices: Deque[BlockId] = deque(block_ids)
        self._all_block_indices = frozenset(block_ids)
        ...
        # ---------------------------------
        # 建立 BlockId 的引用计数，Dict[int, int]
        # ---------------------------------
        self._refcounter = RefCounter(
            all_block_indices=self._free_block_indices)
        self._block_size = block_size

        self._cow_tracker = CopyOnWriteTracker(
            refcounter=self._refcounter.as_readonly())

        if block_pool is None:
            extra_factor = 4
            # Pre-allocate "num_blocks * extra_factor" block objects.
            # The "* extra_factor" is a buffer to allow more block objects
            # than physical blocks
            # ------------------------------
            # 默认创建一个 block 池，默认 block 池的大小是 num_blocks 的 4 倍
            # block pool 中存放了 num_blocks * extra_factor 个
            # NaiveBlock(Block) 的实例，即 block
            #
            # 初始化 block:
            # NaiveBlock(
            #     prev_block=None,
            #     token_ids=[],
            #     block_size=self._block_size,  # BlockPool 中传入的 self._block_size 参数
            #     allocator=self._allocator,  # 即 BlockPool 中传入的 self 参数
            #     block_id=None,
            #     extra_hash=None
            # )
            # ------------------------------
            self._block_pool = BlockPool(self._block_size, create_block, self,
                                         num_blocks * extra_factor)

    def _allocate_block_id(self) -> BlockId:
        if not self._free_block_indices:
            raise BlockAllocator.NoFreeBlocksError()

        block_id = self._free_block_indices.popleft()
        self._refcounter.incr(block_id)
        return block_id

    # ----------------------------
    # 分配一个新的 block，并和前一个 block link
    # 新的 block 的 slot 是空的，等待 append token id
    # ----------------------------
    def allocate_mutable_block(self,
                               prev_block: Optional[Block],
                               extra_hash: Optional[int] = None,
                               device: Optional[Device] = None) -> Block:
        assert device is None
        block_id = self._allocate_block_id()
        # ----------------------------
        # 即从 block 池中选取一个 Block 并调用 Block 的初始化函数
        # ----------------------------
        block = self._block_pool.init_block(prev_block=prev_block,
                                            token_ids=[],
                                            block_size=self._block_size,
                                            physical_block_id=block_id)
        return block

    # ----------------------------
    # 分配一个不可变的 block，并和前一个 block link
    # 同时将 token ids append 到 block 的 _token_ids 属性当中
    # ----------------------------
    def allocate_immutable_block(self,
                                 prev_block: Optional[Block],
                                 token_ids: List[int],
                                 extra_hash: Optional[int] = None,
                                 device: Optional[Device] = None) -> Block:
        assert device is None
        block = self.allocate_mutable_block(prev_block=prev_block)
        block.append_token_ids(token_ids)
        return block

    def swap_out(self, blocks: List[Block]) -> None:
        ...

    def swap_in(self, blocks: List[Block]) -> None:
        ...

BlockPool 中预先创建的 block 如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
# vllm/core/block/naive_block.py
class NaiveBlock(Block):
    def __init__(self,
                 prev_block: Optional[Block],
                 token_ids: List[int],
                 block_size: int,
                 allocator: BlockAllocator,
                 block_id: Optional[int] = None,
                 _cow_target: Optional[Block] = None,
                 extra_hash: Optional[int] = None):
        self._token_ids: List[int] = []
        self._block_size = block_size
        self._prev_block = prev_block
        self._block_id = block_id
        self._allocator = allocator
        self._cow_target = _cow_target if _cow_target is not None else self

        self._append_token_ids_no_cow(token_ids)

    def append_token_ids(self, token_ids: List[int]) -> None:
        self._append_token_ids_no_cow(token_ids)

        if self._block_id is not None:
            self._block_id = (self._allocator.cow_block_if_not_appendable(
                self._cow_target))

    def _append_token_ids_no_cow(self, token_ids: List[int]) -> None:
        if len(token_ids) == 0:
            return

        assert len(token_ids) <= self.num_empty_slots

        self._token_ids.extend(token_ids)

    # ----------------------
    # block 中的 slot 是否填满
    # ----------------------
    @property
    def is_full(self) -> bool:
        return self.num_empty_slots == 0
    # ----------------------
    # block 中剩余空的 slots 的数量
    # ----------------------
    @property
    def num_empty_slots(self) -> int:
        return self._block_size - len(self.token_ids)

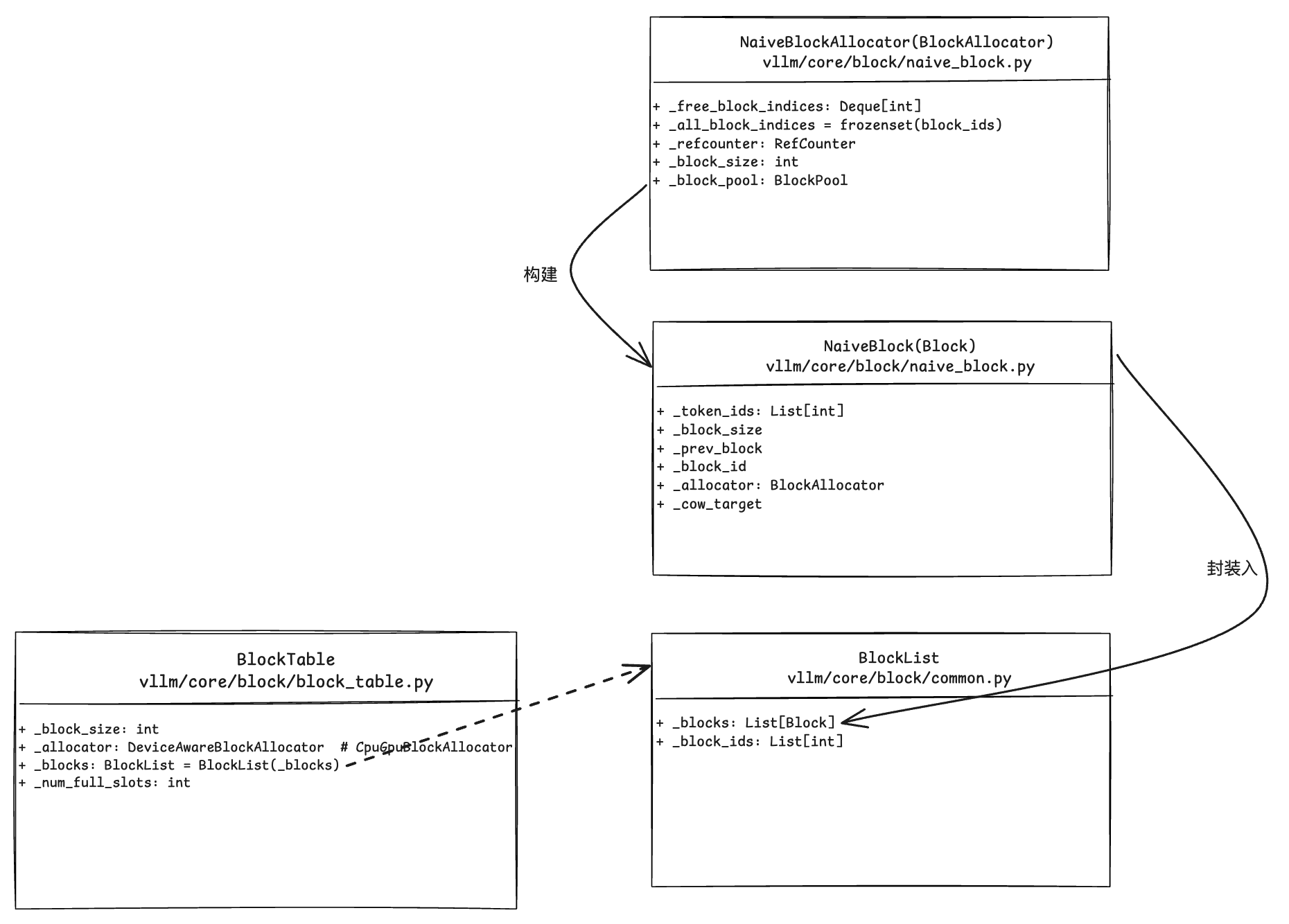

最外层的调用，从 block manager 调用分配的函数。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
class SelfAttnBlockSpaceManager(BlockSpaceManager):
    def can_allocate(self,
                     seq_group: SequenceGroup,
                     num_lookahead_slots: int = 0) -> AllocStatus:
        seq = seq_group.get_seqs(status=SequenceStatus.WAITING)[0]
        # ---------------------------------------
        # seq tokens num / block_size
        # ---------------------------------------
        num_required_blocks = BlockTable.get_num_required_blocks(
            seq.get_token_ids(),
            block_size=self.block_size,
            num_lookahead_slots=num_lookahead_slots,
        )
        # ---------------------------------------
        # 实际调用 NaiveBlockAllocator 的 get_num_free_blocks
        # ---------------------------------------
        num_free_gpu_blocks = self.block_allocator.get_num_free_blocks(
            device=Device.GPU)

        # Use watermark to avoid frequent cache eviction.
        if (self.num_total_gpu_blocks - num_required_blocks
                < self.watermark_blocks):
            return AllocStatus.NEVER
        if num_free_gpu_blocks - num_required_blocks >= self.watermark_blocks:
            return AllocStatus.OK
        else:
            return AllocStatus.LATER

    def allocate(self, seq_group: SequenceGroup) -> None:
        # Allocate self-attention block tables for decoder sequences
        waiting_seqs = seq_group.get_seqs(status=SequenceStatus.WAITING)
        assert not (set(seq.seq_id for seq in waiting_seqs)
                    & self.block_tables.keys()), "block table already exists"

        # NOTE: Here we assume that all sequences in the group have the same
        # prompt.
        seq = waiting_seqs[0]
        block_table: BlockTable = self._allocate_sequence(seq)
        self.block_tables[seq.seq_id] = block_table

block manager 中涉及的几个重要类的关系如下：

总结上述几个类的调用链和关系如下：

  1. SelfAttnBlockSpaceManager(BlockSpaceManager) 调用分配（allocate）的接口，将 seq_group 传入；
  2. 执行 BlockTable 的创建，创建 BlockTable 时传入的参数：CpuGpuBlockAllocator(DeviceAwareBlockAllocator) 的实例和 seq；SelfAttnBlockSpaceManager(BlockSpaceManager) 中管理着 seq_id 到 BlockTable 的映射；
  3. BlockTable 调用分配接口，根据 seq 的 token ids 数量调用 CpuGpuBlockAllocator(DeviceAwareBlockAllocator) 的 allocate_immutable_blocks 和 allocate_mutable_block；
  4. CpuGpuBlockAllocator(DeviceAwareBlockAllocator) 的 allocate_immutable_blocks 和 allocate_mutable_block 调用实际底层是 NaiveBlockAllocator(BlockAllocator) 的分配调用，从而建立 seq <–> block table <–> block 之间的联系。

下图所示：红色箭头为初始化过程；蓝色箭头为调用 allocate 的逻辑。

schedule

总的调度逻辑如下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
# core/scheduler.py
class Scheduler:
    def schedule(
        self
    ) -> Tuple[List[SequenceGroupMetadata], SchedulerOutputs, bool]:
        # Schedule sequence groups.
        # This function call changes the internal states of the scheduler
        # such as self.running, self.swapped, and self.waiting.
        # ---------------------------------------
        # 调度逻辑的入口
        # ---------------------------------------
        scheduler_outputs: SchedulerOutputs = self._schedule()

    # ---------------------------------------
    # 不开启 chunked_prefill 的情况
    # ---------------------------------------
    def _schedule_default(self) -> SchedulerOutputs:
        ...
        # If any requests are swapped, prioritized swapped requests.
        # ---------------------------------------
        # 优先调度 swapped 队列，即使 waiting 队列非空
        # ---------------------------------------
        if not self.swapped:
            prefills = self._schedule_prefills(budget,
                                               curr_loras,
                                               enable_chunking=False)
        # ---------------------------------------
        # 如果 prefill 中没有 seq_groups 且调度策略为 'priority' 时调度优先级抢占的 seq
        # ---------------------------------------
        if len(prefills.seq_groups
               ) == 0 and self.scheduler_config.policy == "priority":
            self._schedule_priority_preemption(budget)

        # Don't schedule decodes if prefills are scheduled.
        # NOTE: If `_schedule_prefills` doesn't enable chunking, self.running
        # only contains decode requests, not chunked prefills.
        # ---------------------------------------
        # prefill 的 seq_groups 为空才会调度 running 或 swapped 队列中的 seq。
        # 即：prefill 和 decode 是分开调度的。
        # ---------------------------------------
        if len(prefills.seq_groups) == 0:
            running_scheduled = self._schedule_running(budget,
                                                       curr_loras,
                                                       enable_chunking=False)

            # If any sequence group is preempted, do not swap in any sequence
            # group. because it means there's no slot for new running requests.
            # ---------------------------------------
            # 如果 preempted 和 swapped_out 为空，说明 running_scheduled 中的 seq_group 都能正常分配 kv cahche 的空间，
            # 则可以将 swapped 队列中的 seq_group swap_in 进行调度。
            # ---------------------------------------
            if (len(running_scheduled.preempted) +
                    len(running_scheduled.swapped_out) == 0):
                swapped_in = \
                    self._schedule_swapped(budget, curr_loras)

关于 prefill 阶段的调度：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
# core/scheduler.py
class Scheduler:
    def _schedule_prefills(
        self,
        budget: SchedulingBudget,
        curr_loras: Optional[Set[int]],
        enable_chunking: bool = False,
        partial_prefill_metadata: Optional[PartialPrefillMetadata] = None,
    ) -> SchedulerPrefillOutputs:
    ...
        # ---------------------------------------
        # prefill 阶段的 seq_groups 都在 waiting 的队列中
        # ---------------------------------------
        while self._passed_delay(time.time()) and waiting_queue:
            # ---------------------------------------
            # fcfs 调度方式，先进先调度
            # ---------------------------------------
            seq_group = waiting_queue[0]

            waiting_seqs = seq_group.get_seqs(status=SequenceStatus.WAITING)
            ...
            # ---------------------------------------
            # prefill 阶段，num_new_tokens_cached 为 0；num_new_tokens_uncached 为 prompt 的长度。
            # ---------------------------------------
            num_new_tokens_uncached, num_new_tokens_cached = (
                self._get_num_new_uncached_and_cached_tokens(
                    seq_group,
                    SequenceStatus.WAITING,
                    enable_chunking,
                    budget,
                    partial_prefill_metadata=partial_prefill_metadata,
                ))
            # ---------------------------------------
            # 如果 num_new_tokens > scheduler 默认设置的最大值（如：32768）
            # 则该 seq_group 中的 seq 都将被设置为 SequenceStatus.FINISHED_IGNORED
            # ---------------------------------------
            num_new_tokens = num_new_tokens_uncached + num_new_tokens_cached
            ...
            # If the sequence group cannot be allocated, stop.
            # ---------------------------------------
            # 判断当前 seq_group 是否有可分配的 KV Cache（由 block manager 管理），下面会详细介绍。
            # ---------------------------------------
            can_allocate = self.block_manager.can_allocate(
                seq_group, num_lookahead_slots=num_lookahead_slots)
            if can_allocate == AllocStatus.LATER:
                break
            elif can_allocate == AllocStatus.NEVER:
                logger.warning(
                    "Input prompt (%d tokens) + lookahead slots (%d) is "
                    "too long and exceeds the capacity of block_manager",
                    num_new_tokens,
                    num_lookahead_slots,
                )
                for seq in waiting_seqs:
                    seq.status = SequenceStatus.FINISHED_IGNORED
                ignored_seq_groups.append(seq_group)
                waiting_queue.popleft()
                continue
            ...
            # ---------------------------------------
            # 将 waiting 队列最先进入的 seq_group pop 出来，
            # 为该 seq_group 分配 kv cache blocks，
            # 并且将该 seq_group 中的 seq 状态由 SequenceStatus.WAITING 设置为 SequenceStatus.RUNNING。
            # ---------------------------------------
            waiting_queue.popleft()
            self._allocate_and_set_running(seq_group)
            ...
            seq_groups.append(
                ScheduledSequenceGroup(seq_group=seq_group,
                                       token_chunk_size=num_new_tokens))
            # ---------------------------------------
            # 更新 budget 状态
            # 一个是总的 batched tokens 一个是处理的 seq 数量
            # ---------------------------------------
            budget.add_num_batched_tokens(
                seq_group.request_id,
                num_batched_tokens=num_new_tokens_uncached,
                num_cached_tokens=num_new_tokens_cached,
            )
            budget.add_num_seqs(seq_group.request_id, num_new_seqs)
        ...
        return SchedulerPrefillOutputs(
            seq_groups=seq_groups,
            ignored_seq_groups=ignored_seq_groups,
            num_lookahead_slots=self._get_num_lookahead_slots(
                is_prefill=True, enable_chunking=enable_chunking),
        )

关于 decode 阶段调度：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
# core/scheduler.py
class Scheduler:
    def _schedule_running(
        self,
        budget: SchedulingBudget,
        curr_loras: Optional[Set[int]],
        enable_chunking: bool = False,
        partial_prefill_metadata: Optional[PartialPrefillMetadata] = None,
    ) -> SchedulerRunningOutputs:
    ...
        while running_queue:
            seq_group = running_queue[0]
            # We discard the cached tokens info here because we don't need it
            # for running sequence:
            #   1. If a sequence is running with chunked prefill, the cached
            #      tokens info was already used for the first prefill.
            #   2. If a sequence is running with non-chunked prefill, then
            #      there it's a decoding sequence, and the cached tokens info is
            #      irrelevant.
            num_uncached_new_tokens, _ = \
                self._get_num_new_uncached_and_cached_tokens(
                seq_group,
                SequenceStatus.RUNNING,
                enable_chunking,
                budget,
                partial_prefill_metadata,
            )
            running_queue.popleft()
            ...
            while not self._can_append_slots(seq_group, enable_chunking):
                budget.subtract_num_batched_tokens(seq_group.request_id,
                                                   num_running_tokens)
                num_running_seqs = seq_group.get_max_num_running_seqs()
                budget.subtract_num_seqs(seq_group.request_id,
                                         num_running_seqs)

                if (curr_loras is not None and seq_group.lora_int_id > 0
                        and seq_group.lora_int_id in curr_loras):
                    curr_loras.remove(seq_group.lora_int_id)

                # Determine victim sequence
                cont_loop = True
                # ---------------------------------------
                # 如果 running 的队列非空，但是没有空间分配 kv cache，
                # 就将 running 队列的最后一个 seq_group pop 出来作为抢占或者 swapped out，然后循环直到满足退出条件

                # 如果 running 的队列为空，没有可分配 kv cache 的空间，则将当前 seq_group 作为抢占或者 swapped out
                # ---------------------------------------
                if running_queue:
                    # Preempt the lowest-priority sequence group.
                    victim_seq_group = running_queue.pop()
                else:
                    # No other sequence group can be preempted.
                    # Preempt the current sequence group.
                    # Note: This is also where we stop this loop
                    # (since there is nothing else to preempt)
                    victim_seq_group = seq_group
                    cont_loop = False

                # With async postprocessor, before preempting a sequence
                # we need to ensure it has no pending async postprocessor
                do_preempt = True
                if self.use_async_output_proc:
                    assert self.output_proc_callback is not None
                    self.output_proc_callback(
                        request_id=victim_seq_group.request_id)

                    # It may be that the async pending "victim_seq_group"
                    # becomes finished, in which case we simply free it.
                    if victim_seq_group.is_finished():
                        self._free_finished_seq_group(victim_seq_group)
                        do_preempt = False

                # Do preemption
                if do_preempt:
                    # ---------------------------------------
                    # 决定抢占模式 SWAP or RECOMPUTE
                    # ---------------------------------------
                    preempted_mode = self._preempt(victim_seq_group,
                                                   blocks_to_swap_out)
                    if preempted_mode == PreemptionMode.RECOMPUTE:
                        preempted.append(victim_seq_group)
                    else:
                        swapped_out.append(victim_seq_group)

                if not cont_loop:
                    break
            else:
                # ---------------------------------------
                # 分配 slot，后续进行 decode
                # ---------------------------------------
                self._append_slots(seq_group, blocks_to_copy, enable_chunking)

swapped 的调度：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# core/scheduler.py
class Scheduler:
    def _schedule_swapped(
        self,
        budget: SchedulingBudget,
        curr_loras: Optional[Set[int]],
        enable_chunking: bool = False,
    ) -> SchedulerSwappedInOutputs:
    ...
        blocks_to_swap_in: List[Tuple[int, int]] = []
        blocks_to_copy: List[Tuple[int, int]] = []
        decode_seq_groups: List[ScheduledSequenceGroup] = []
        prefill_seq_groups: List[ScheduledSequenceGroup] = []
        infeasible_seq_groups: List[SequenceGroup] = []

        swapped_queue = self.swapped

        leftover_swapped: Deque[SequenceGroup] = deque()
        while swapped_queue:
            seq_group = swapped_queue[0]
            swapped_queue.popleft()

            self._swap_in(seq_group, blocks_to_swap_in)
            self._append_slots(seq_group, blocks_to_copy, enable_chunking)
            ...
